Zero Guesswork.
The integrated Shim System by KT Foiling, advancing beyond earlier foil designs with a fully modernized adjustment system, engineered for high performance and easy tuning. Zero Guesswork.

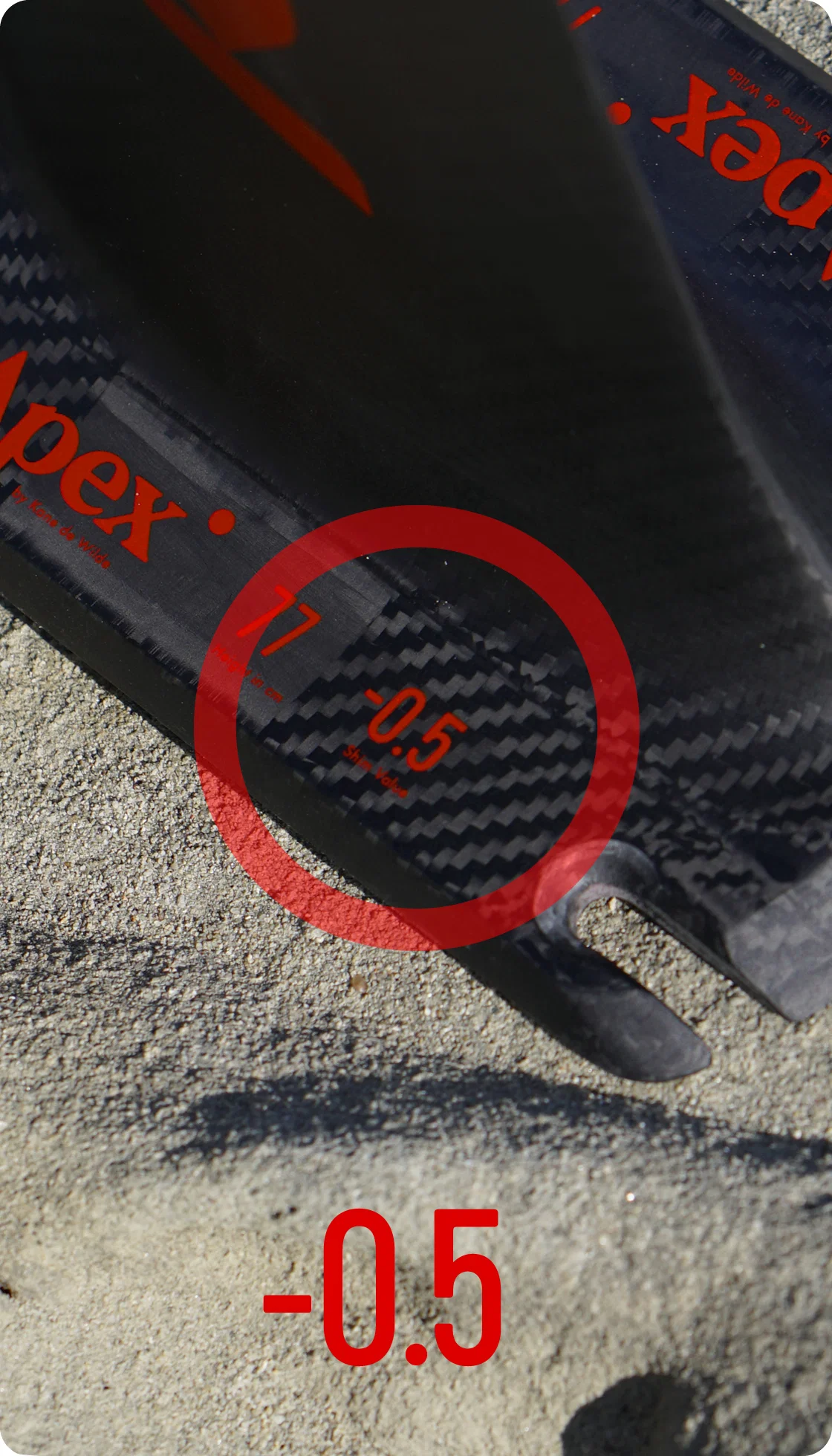

Mast Value.
Shim Value printed on each Mast.

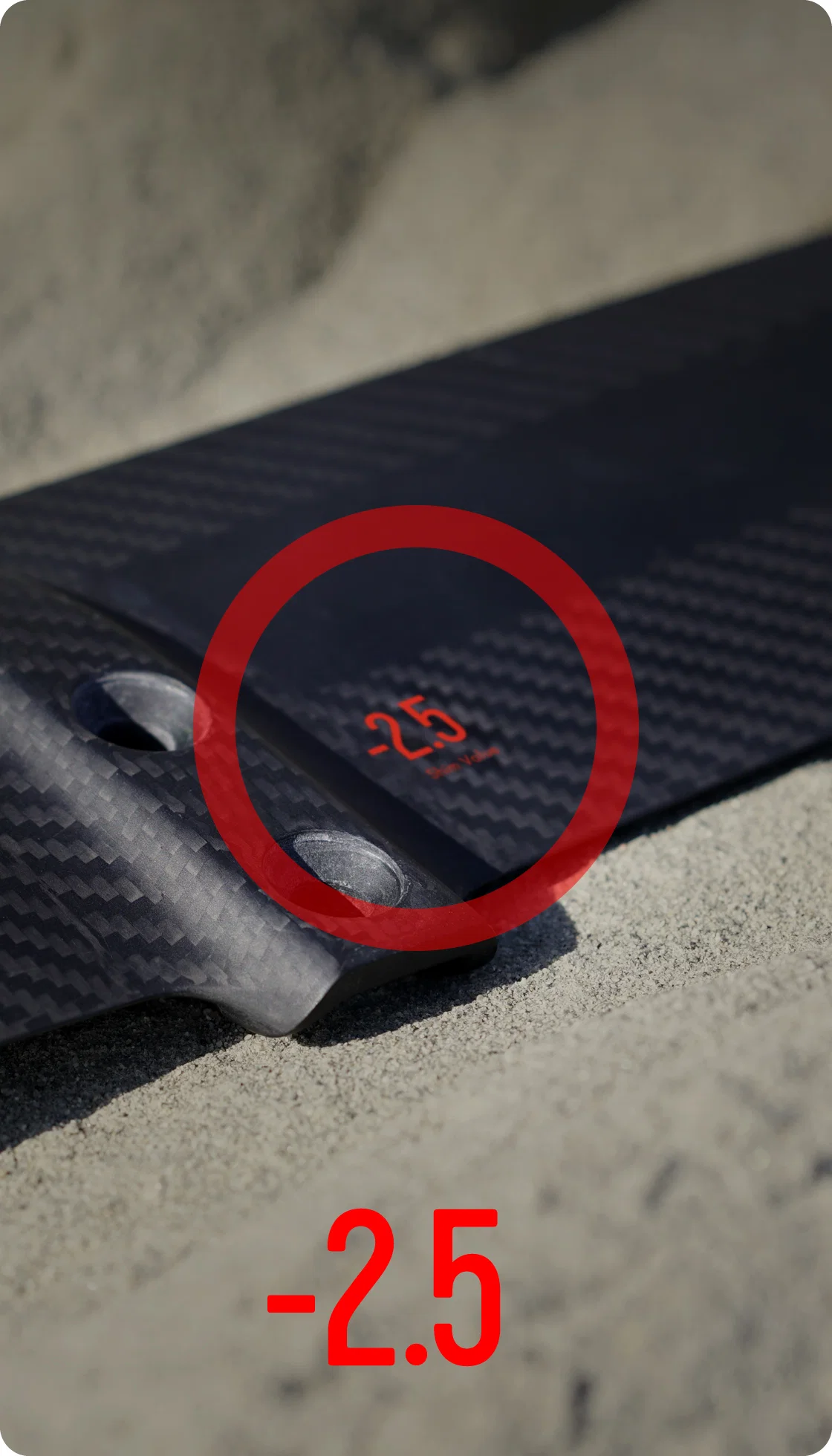

Front Wing Value.
Shim Value printed on each Front Wing.
Shim Value.

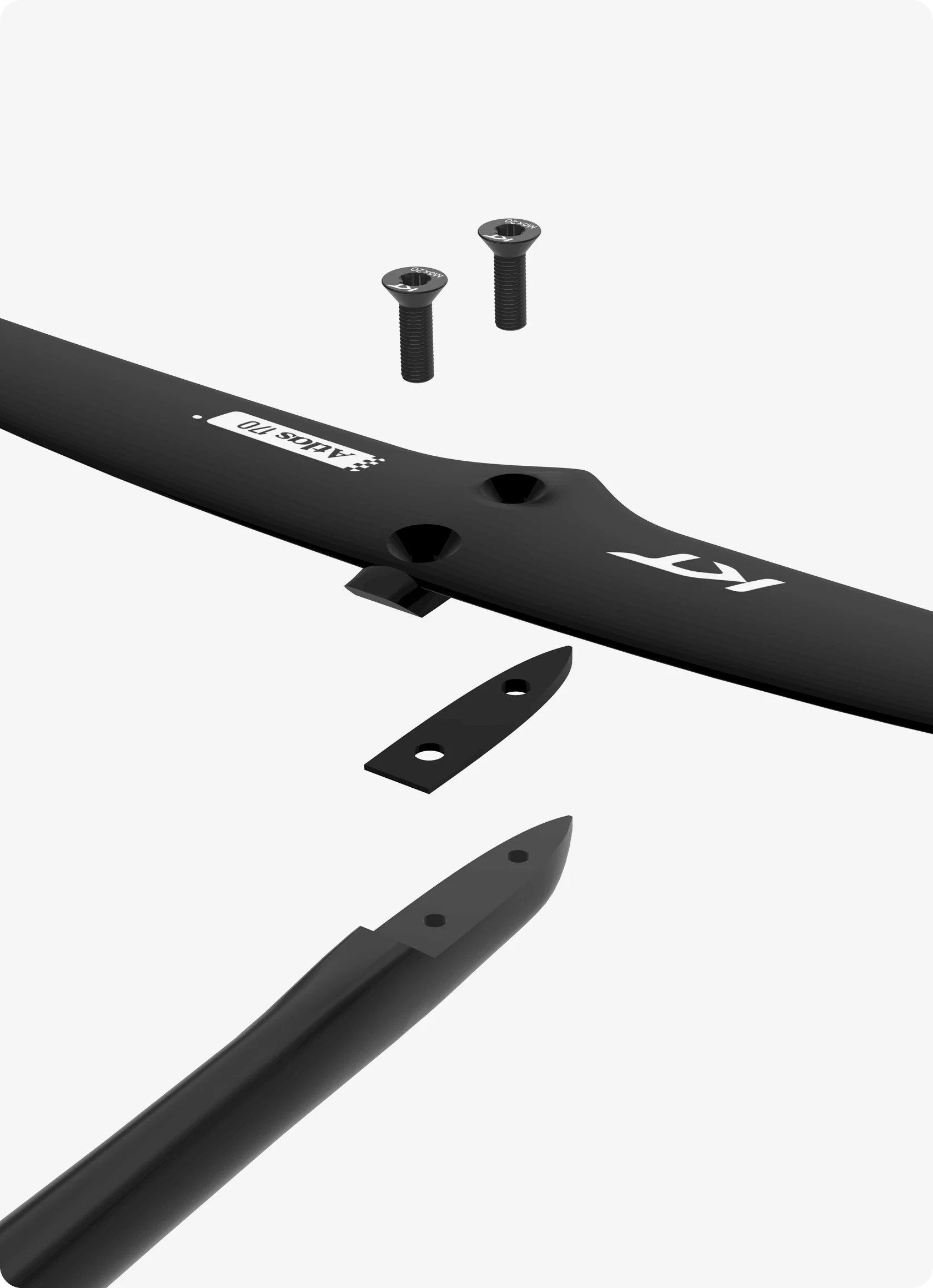

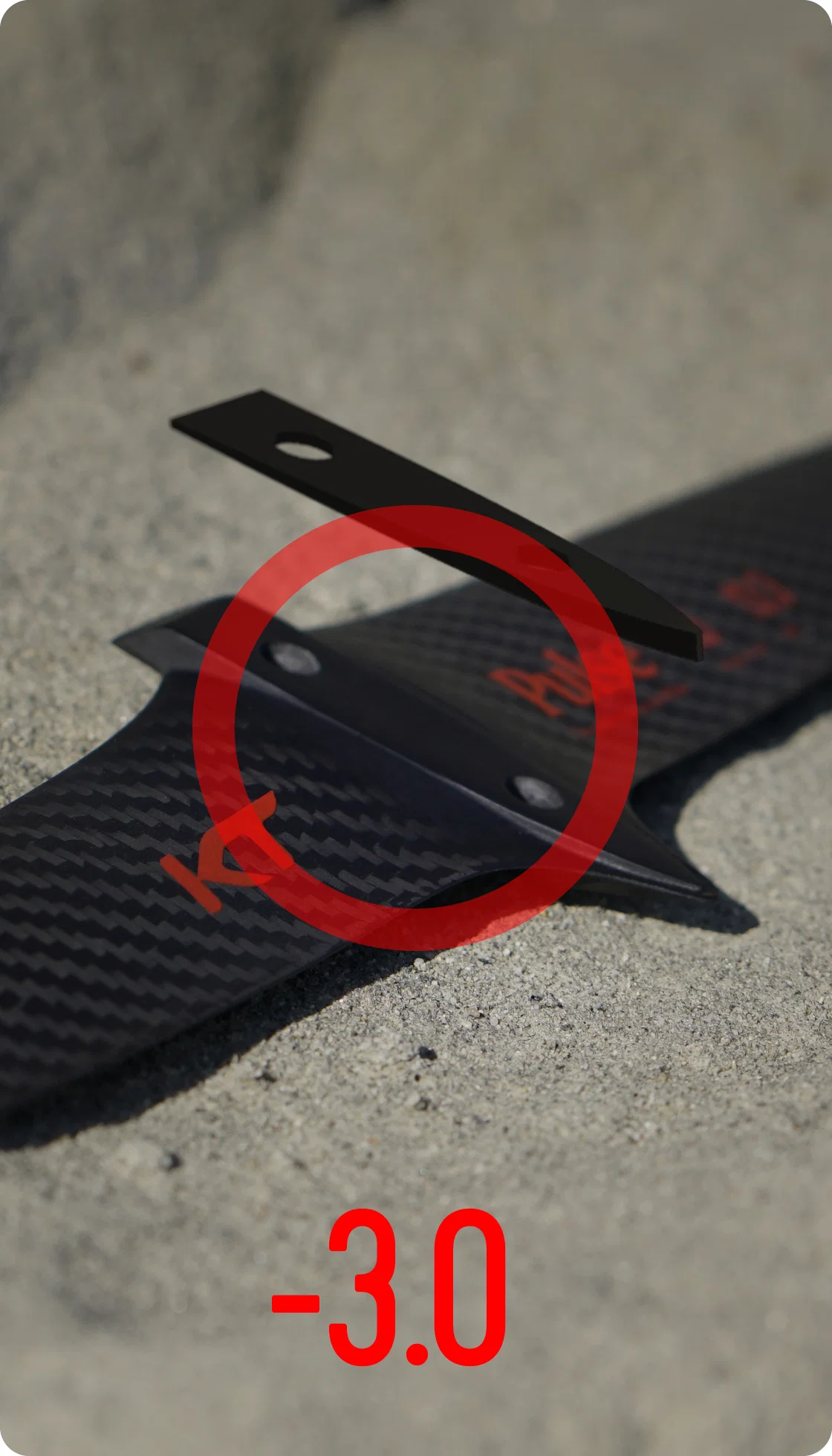

Shim to be applied between Back Wing and Fuselage.
Our foil setup is designed to make foiling smoother, faster, and easier to tune, no matter your level or the conditions. The deliberately incremental steps of our Shim System are the core part of this setup.
A fully integrated setup, engineered to function as one unified structure, maximizing glide, stability, and responsiveness. Quality of components resulting in augmented efficiency. The Mast to Fuselage to Wings interface is fully compatible between all our foil components.
Eliminates unwanted twist and flex, for uncompromised power transfer and consistent performance. Designed for fast, hassle‑free setup and breakdown, so you can spend more time riding and less time rigging.
Enables fast, precise adjustments to match different rider styles, and conditions. Dial it in effortlessly. Delivers confident, predictable control in every condition from high‑speed runs to choppy, turbulent water.
The KT Foiling Shim System is literally a three step process. Easy. 1. Take the Mast value. 2. Take the Front Wing value. 3. The sum of those two numbers is your Back Wing Shim Value. Done.
Zero Guesswork. The Shim System gives you the cheat sheet to extracting the most performance from every part combination in a way that can’t be achieved with any other system.
The full Shim Set consists of these angles, and is already part of your Hardware Set:

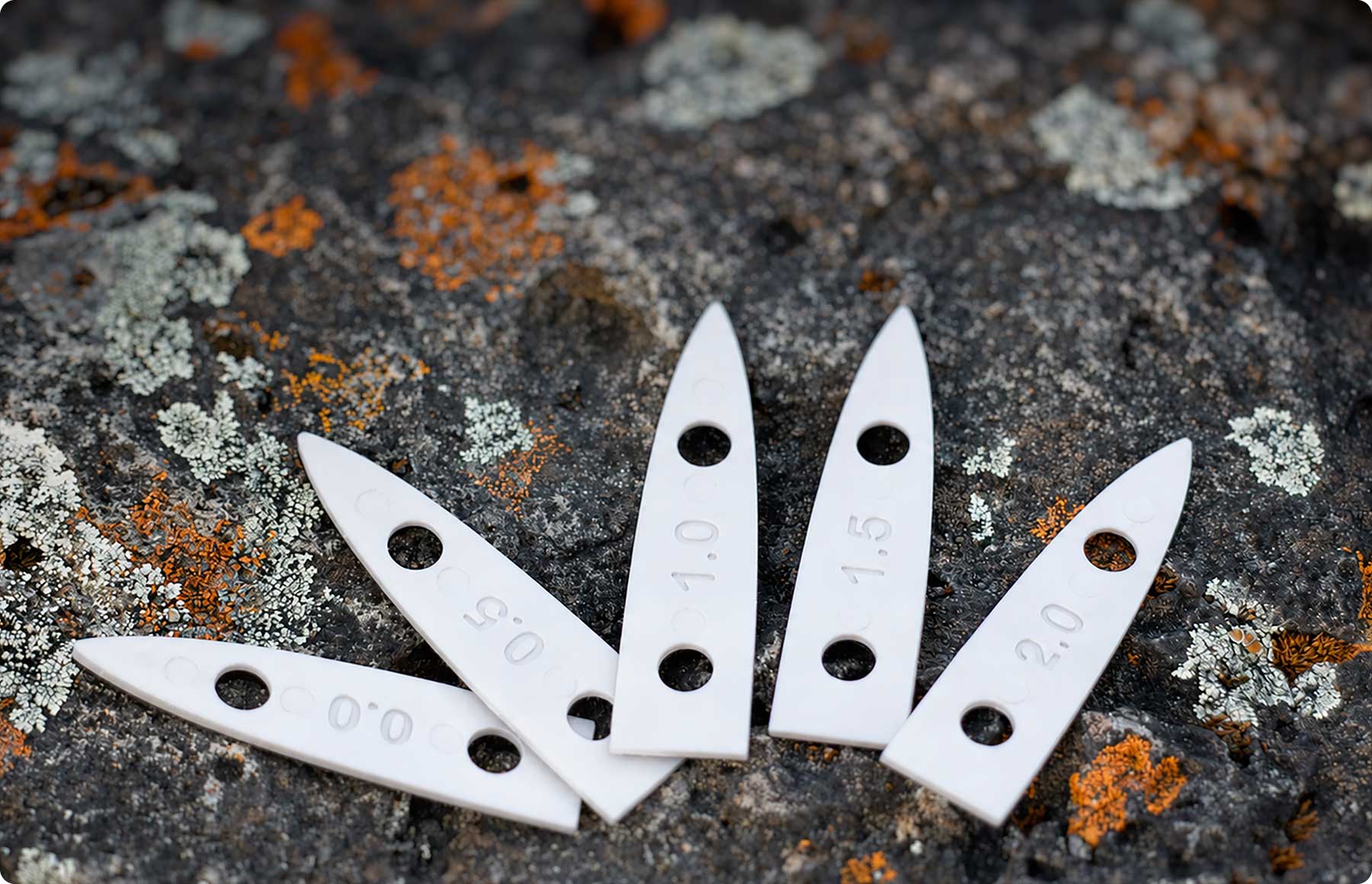

White Positive Shims: +2.5, +2.0, +1.5, +1.0, +0.5, 0.0.
Black Negative Shims: -0.5, -1.0, -1.5, -2.0, -2.5, -3.0, -3.5*, -4.0*, -4.5*, -5.0*. *Coming soon.
Starting Point.
Neutral Lift.
Combining the Mast Value and the Front Wing Value yields the Neutral Lift Shim Value, the ideal Starting Point for most riders.

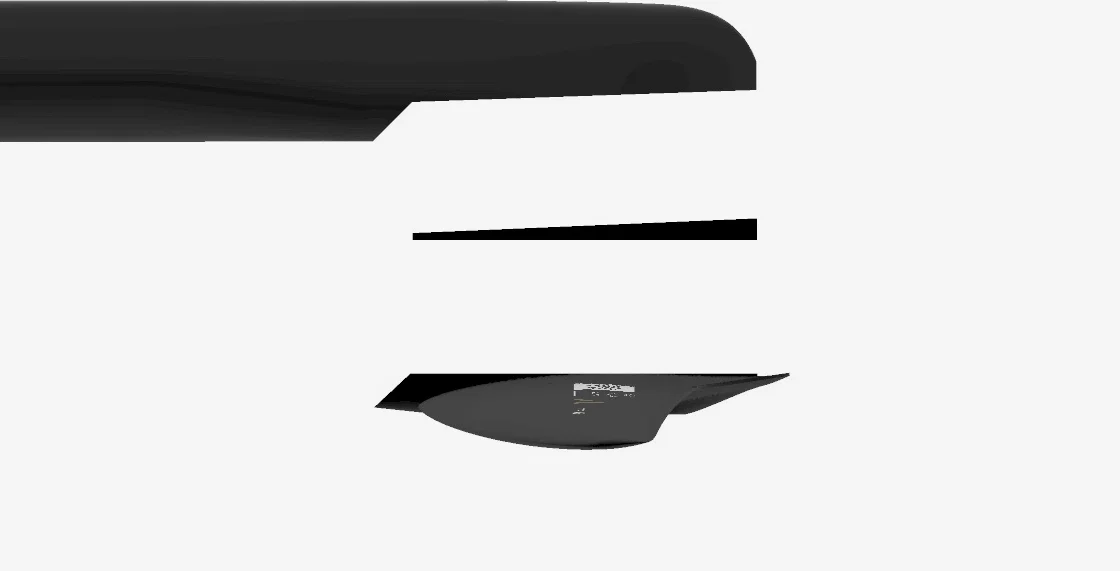

As you gain experience, the KT Foiling Shim System allows you to start fine tuning Back Wing Shim Values, to refine the setup, whether you need more lift or less lift. This may involve more positive or more negative shim settings, to maximize the usable range of your front foil across different conditions.
Positive (+) calculation result: Use White Shim with (+) angle.
Negative (-) calculation result: Use Black Shim with (-) angle.

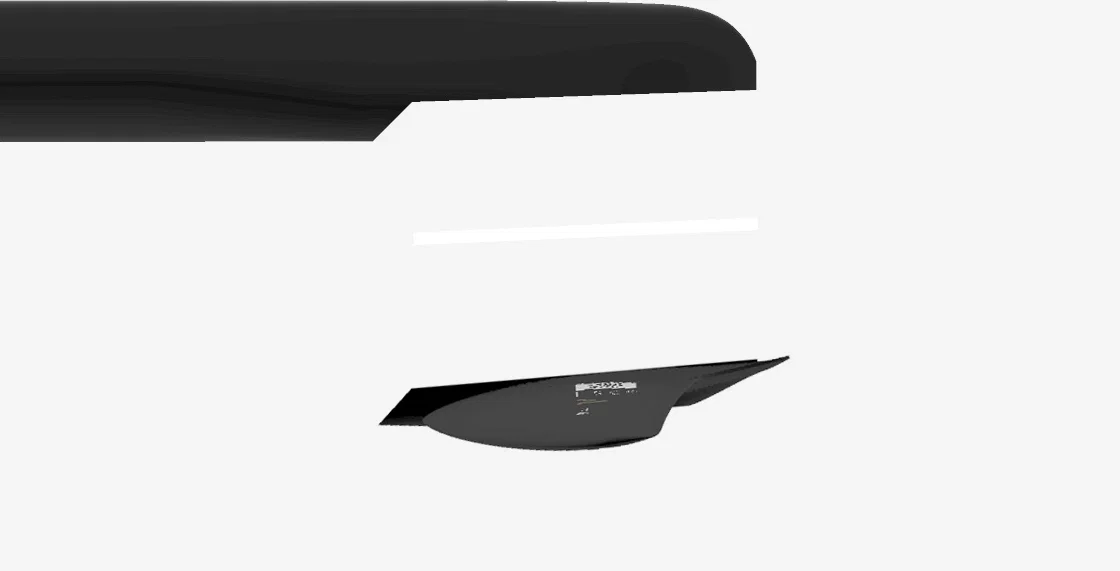

Neutral Lift.

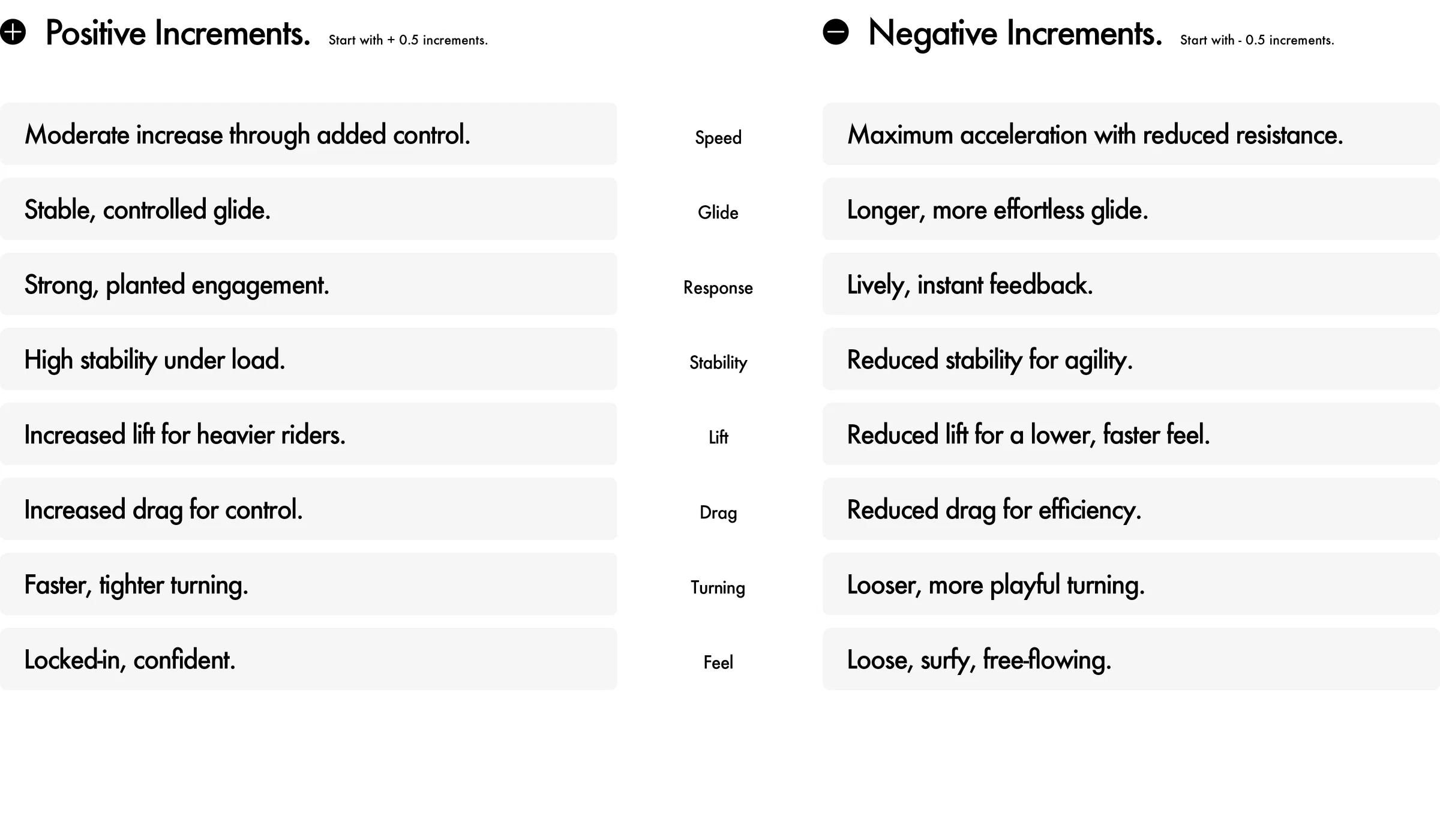

Positive Increments.
More Lift from Starting Point.
We recommend to begin with + 0.5 degree increments for:
More Stability
Easier Take-Off
Faster Turning
Accentuated Front Foot Pressure
Suitable for heavier riders
Increased Drag
Suitable for smaller waves
Suitable for sedimented water
More Lift.

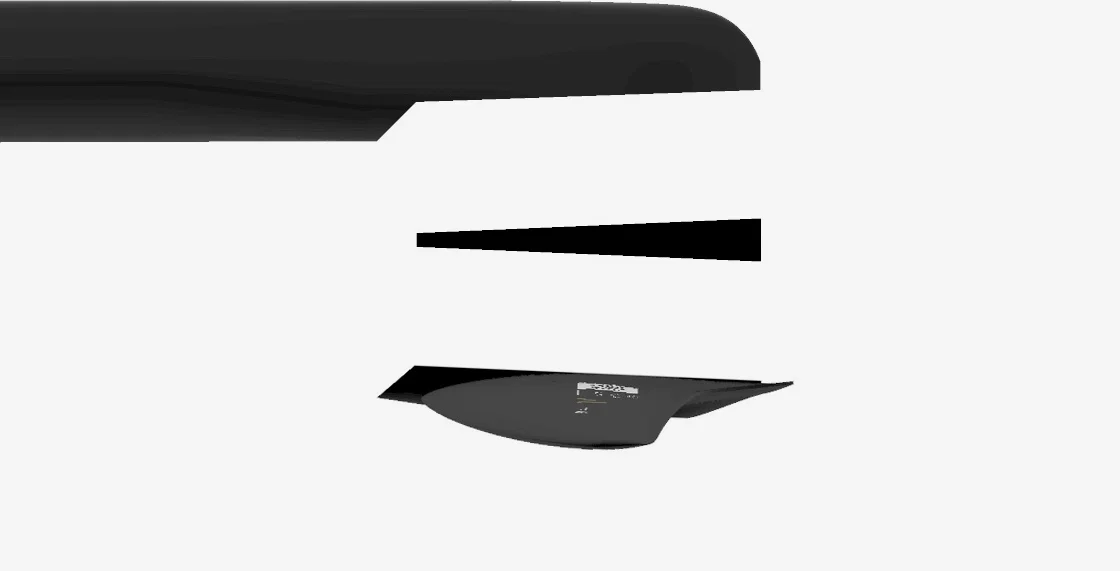

Negative Increments.
Less Lift from Starting Point.
We recommend to begin with – 0.5 degree increments for:
More Speed
More Glide
Less Drag
More Direct Response
Looser Feel
Reduced Stability
Suitable for larger waves
Suitable for clean water
Less Lift.
