Generation 1.

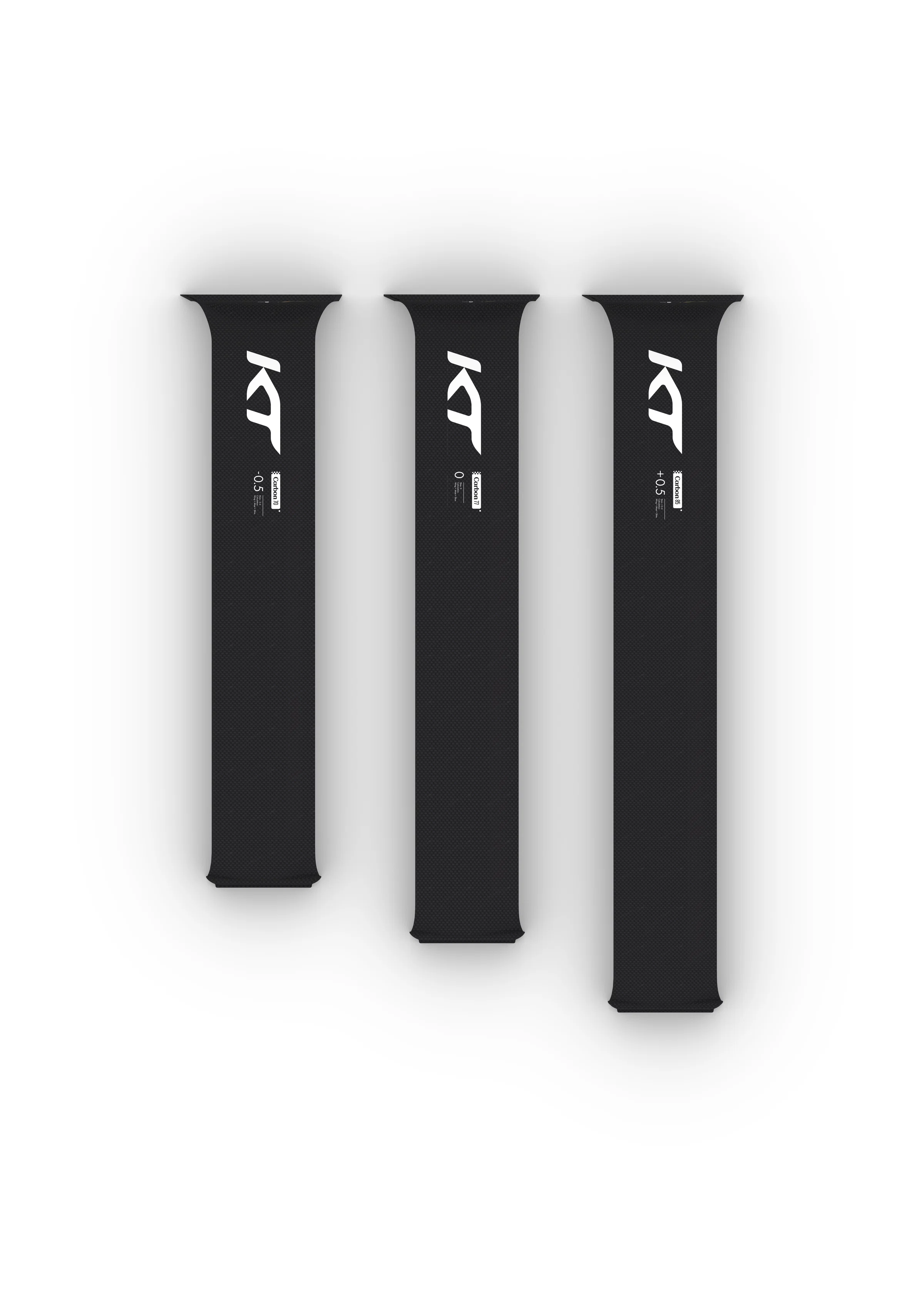

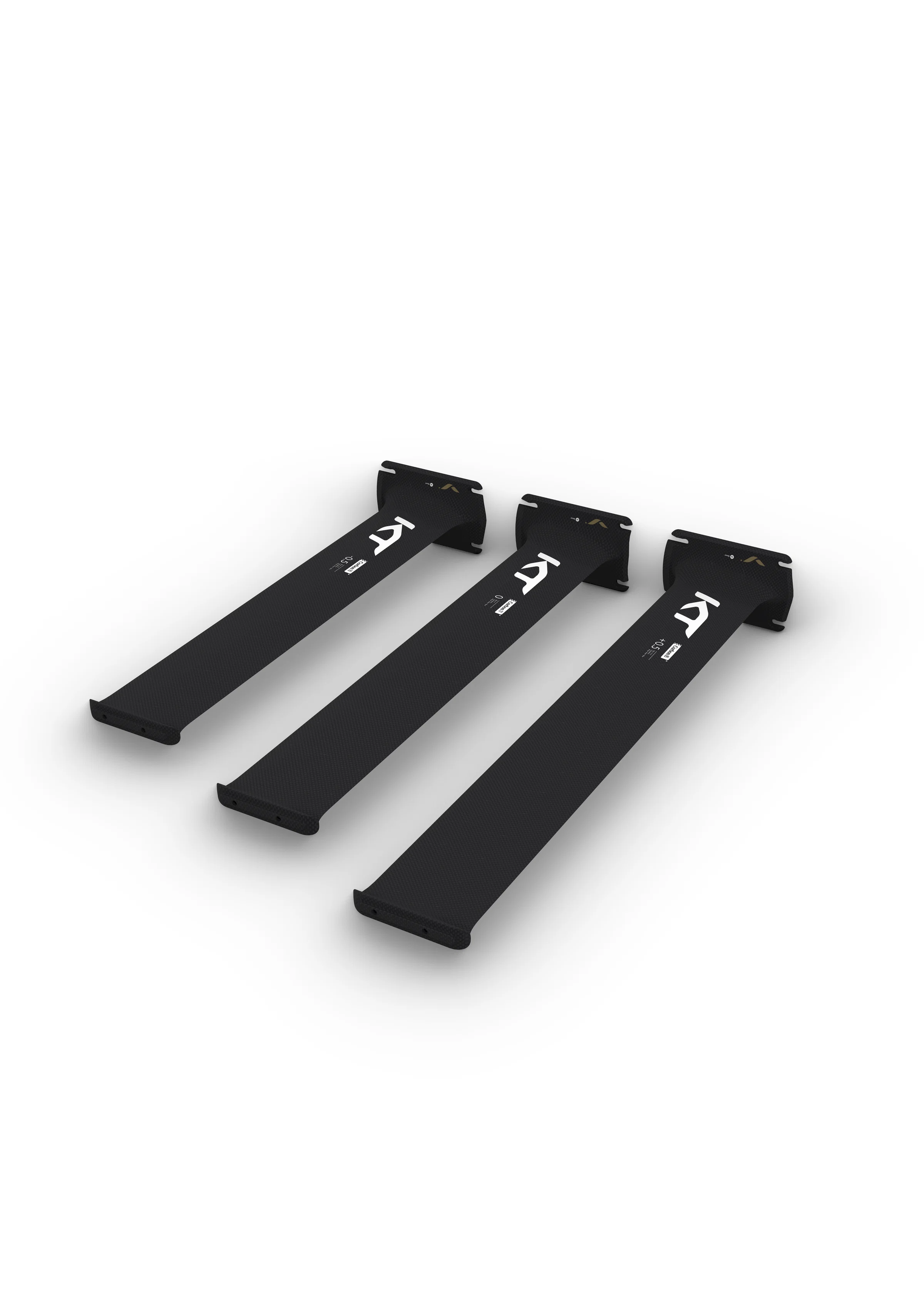

The Carbon Mast is constructed from a High Modulus (HM) Carbon blend, delivering superior strength and minimal weight.
HM Carbon Blend: Combines superior stiffness with lightweight properties.

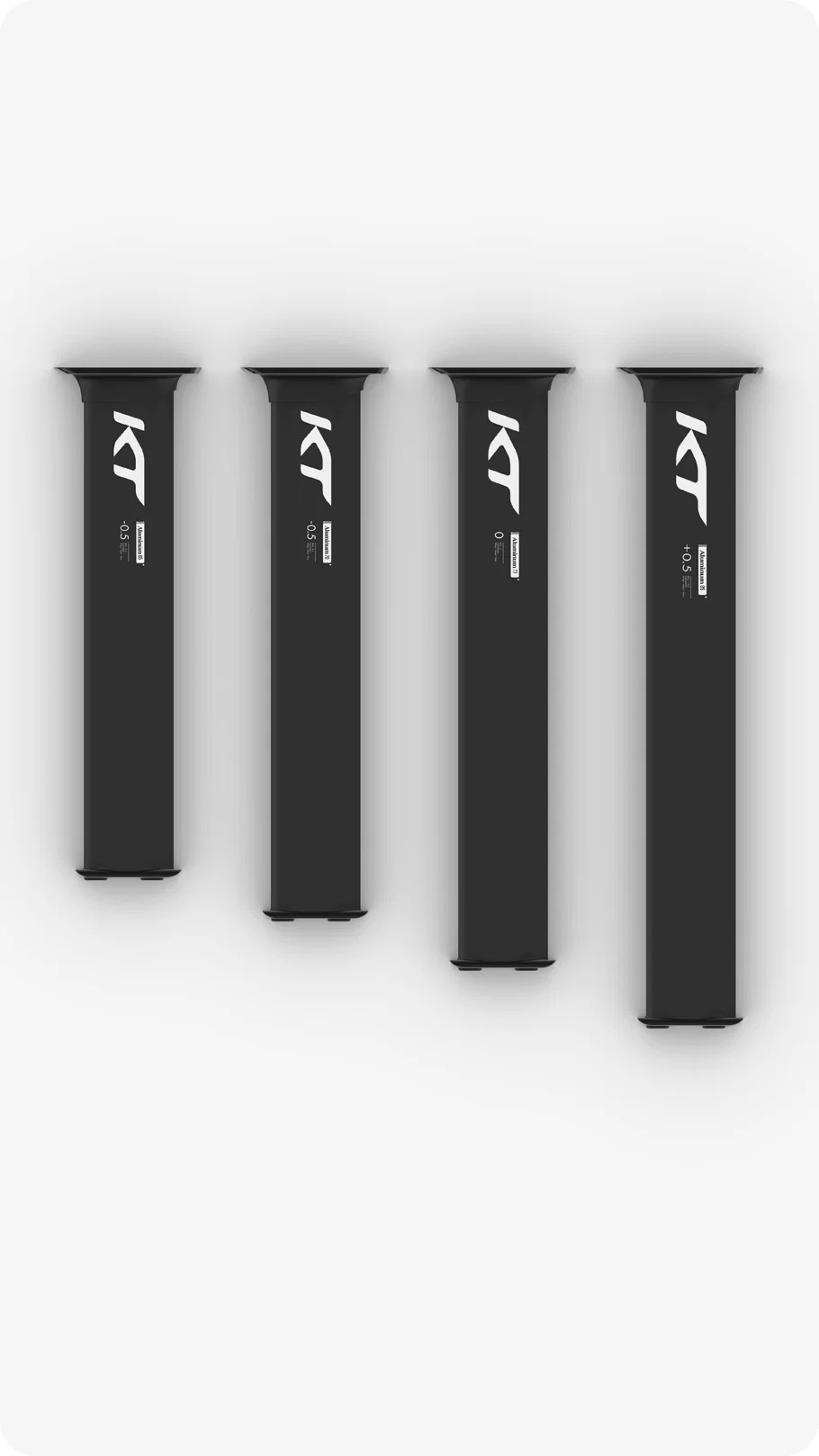

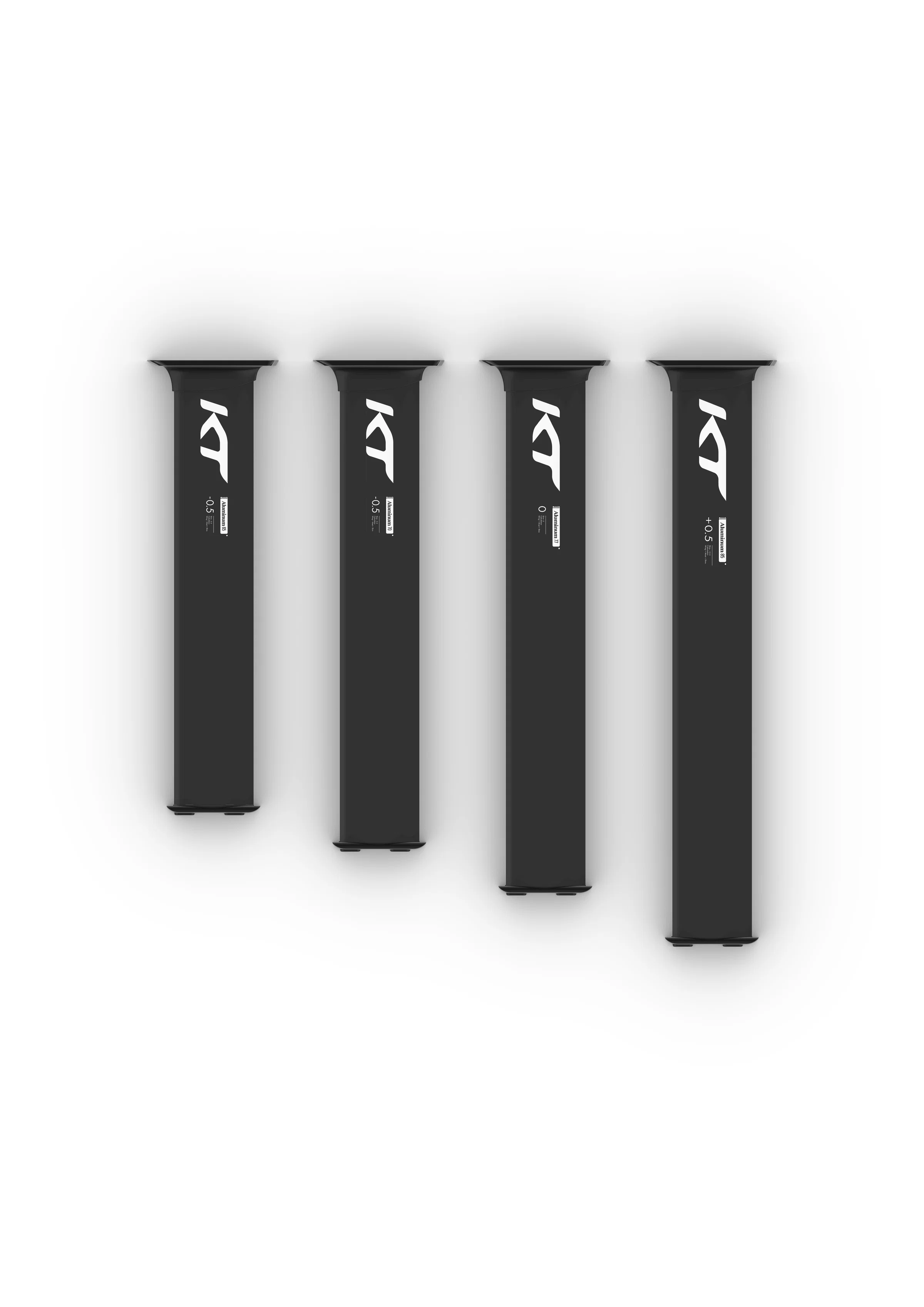

The Aluminum Mast features a robust foil section with an optimized profile that offers impressive stiffness and minimal drag.
Comparable Performance: Matches the submerged drag of the Carbon Mast at higher speeds.
Without the use of a Shim the performance of your Foil is compromised.
Visit this link to read about the Basic Setup and Custom Tuning of your Foil Assembly by KT Foiling.
Carbon: The ventilation-resistant foil section maintains efficiency at high speeds, steep angles, and in turbulent conditions.
Aluminum: Maintains laminar flow and performance at aggressive angles, through turbulence, and at higher speeds.
Carbon: At 15.5mm thickness, it strikes an ideal balance between rigidity, responsiveness, and speed, making it perfect for high-performance use, heavier riders, and high-aspect foils.

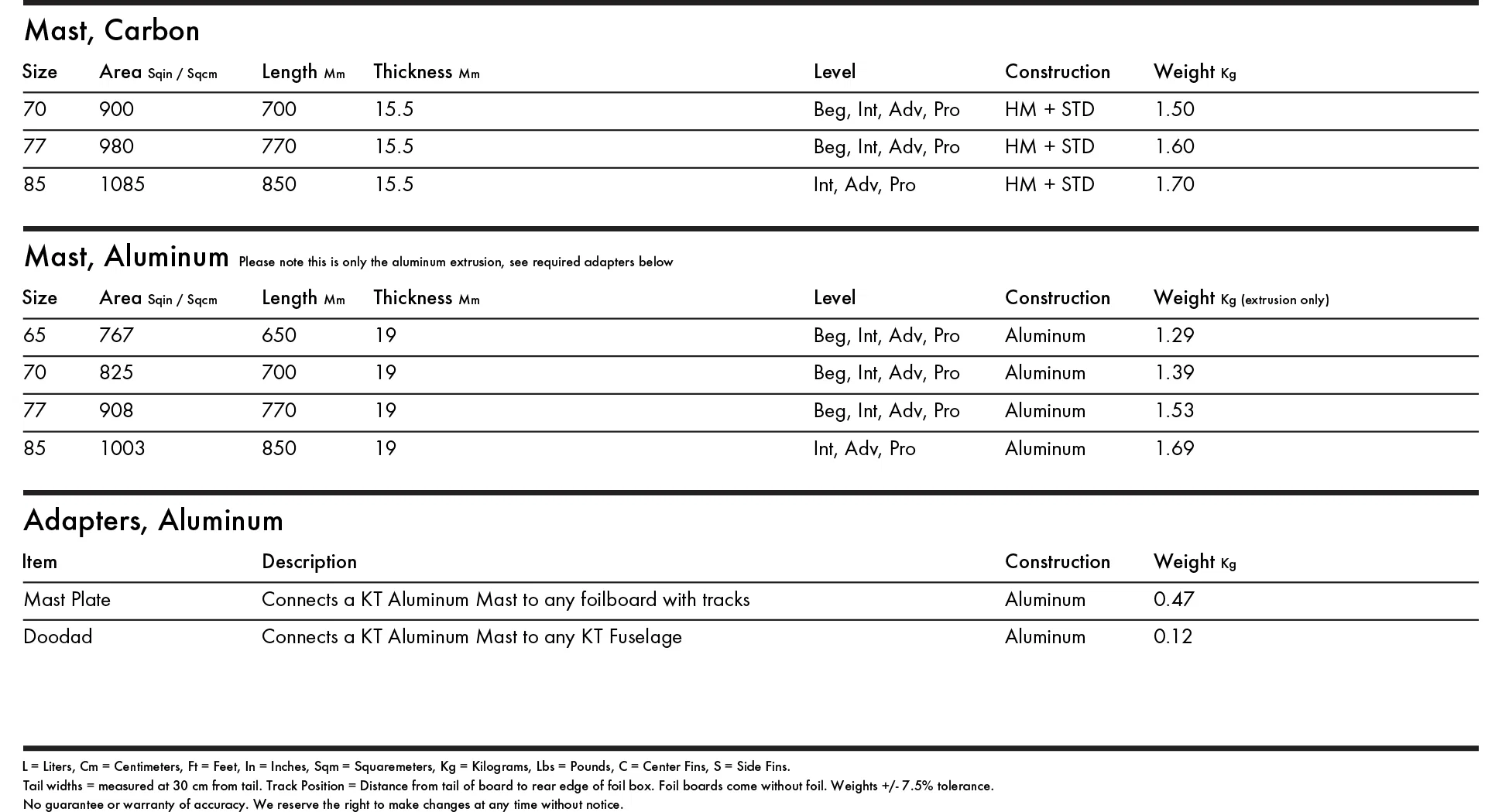

Available Sizes: 70, 77, 85 cm.
Aluminum: Despite its 19mm thickness, the design performs like a thinner mast at higher speeds, maintaining comparable submerged drag to the Carbon Mast above 13 mph.
Available Sizes: 65, 70, 77, 85 cm.
Stock Model comes with vertical logos.
Universal.
Our Carbon Mast is constructed from a High Modulus (HM) Carbon blend, delivering superior strength and minimal weight. Its straight, zero-taper design ensures a consistent feel while reducing submerged drag, optimizing performance at high speeds. The ventilation-resistant foil section maintains efficiency even in turbulent conditions. At 15.5mm thickness, it strikes an ideal balance between rigidity, responsiveness, and speed, making it perfect for high-performance use, heavier riders, and high-aspect foils.
Our Aluminum Mast features a robust foil section with an optimized profile that offers impressive stiffness and minimal drag. Despite its 19mm thickness, the design performs like a thinner mast at higher speeds, maintaining comparable submerged drag to the Carbon Mast above 13 mph. It provides a durable and cost-effective alternative with solid, reliable performance.
Carbon: 15.5mm Thickness: Balances rigidity, responsiveness, and speed.
Aluminum: High Ventilation Resistance: Maintains laminar flow and performance at aggressive angles, through turbulence, and at higher speeds.
Stock Model comes with vertical logos.
Carbon: Satin Finish and minimalist timeless logos.
Aluminum: Anodized Finish and minimalist timeless logos.
Stock Model comes with vertical logos.
Low Profile Streamlined Shape: Reduces drag and enhances overall performance.
Seamless Integration with Shim: Easily insert baseplate shims from either side to adjust the board angle relative to the foil for quick and precise tuning.
Short Cord Length for Maximum Adjustment: Offers flexibility in mast positioning across all foilboard brands.
Slotted M8 Screw Fittings: Allows for quick and easy mast installation or removal by sliding track screws on or off the baseplate.
Aluminum Baseplate and Doodad available, fitting all aluminum mast lengths.
Low Profile Streamlined Shape: Reduces drag and enhances overall performance.
Seamless Integration with Shim: Easily insert baseplate shims from either side to adjust the board angle relative to the foil for quick and precise tuning.
Short Cord Length for Maximum Adjustment: Offers flexibility in mast positioning across all foilboard brands.
Slotted M8 Screw Fittings: Allows for quick and easy mast installation or removal by sliding track screws on or off the baseplate.
HM Carbon Blend
Combines superior stiffness with lightweight properties.
Zero Taper Design
Ensures consistent feel and reduced submerged drag.
Ventilation-Resistant Foil Section
Effective at high speeds, steep angles, and in turbulent conditions.
Optimized Foil Section
Delivers excellent stiffness-to-weight ratio and low surface drag, with a 19mm mast designed to perform like a thinner mast.
High Ventilation Resistance
Maintains laminar flow and performance at aggressive angles, through turbulence, and at higher speeds.
Comparable Performance
Matches the submerged drag of the Carbon Mast at higher speeds.
For all waves, anywhere, anytime. Small, big. Slow, fast. Onshore, sideshore. Even flat water lagoons.
Our mast, front wing, and tail connections feature optimized cut-outs to minimize weight and drag, while the footprint connection ensures a precise, grooved fit, reducing wear compared to traditional tuttle connections.
Each item comes with its own bespoke formfitting protective bag. Travel bag available.
Stock Model comes with vertical logos.
We are excited to unveil our new line of contest and race winning hydrofoils, designed to push the boundaries of progression, performance, and innovation. With meticulous R&D, cutting-edge profiles, and future proof connections, these foils are crafted to seamlessly pair with any board and offer an unparalleled range of speed, glide and control.
Three distinct series cater to a wide range of riding styles and skill levels, ensuring that every rider can find a perfect match. Each foil has been individually designed and optimally tuned to provide the most balanced and efficient flight across different combinations of wings, masts and fuselages.
Rigorously tested by elite athletes like Kai Lenny, as well as everyday riders, KT Foiling is committed to delivering exceptional quality and performance.
All parts are interchangeable within the entire KT Foiling foil range.
The space below is yours to share your thoughts. Find existing reviews below. Asterisks denote required fields.
Voici la traduction en anglais :
I tested the KT foil, 77 mast, 570 front wing. Really nice, but the aluminium fuselage prevents me from selling my Armstrong gear. The thing is, maintaining aluminium is complicated because of electrolysis. I understand that it helps lower the price of the foil, but for me overall quality comes first. So the day you sell a carbon fuselage, I’m buying! Thanks.
Response: Aloha Laurent, thanks for reaching out.
We choose aluminum for our fuselage because it offers the best mix of strength, weight, cross-sectional area, and isotropic strength to handle the connection system. All threads are stainless steel, and connecting surfaces are insulated with E-glass, so corrosion is only a cosmetic issue.
We are open to carbon in the future, but for now, given the current small fuselage, we haven\'t seen the advantages outweigh the performance benefits.
Mahalo,
Kane
