Optimized for Surf, Wing, and Wake: Tailored for turning and surf-style performance across various conditions.
Nomad
Front & Back Wings.
Generation 1.
Generation 1.
Dynamic control, exceptional speed range, and adaptable performance across all conditions.
Carve-Oriented Geometry: Swept mid-aspect ratio design enhances responsive and intuitive handling for surf and skate style performance.
Advanced High Camber Airfoil: Optimized for maximum efficiency across a wide speed range, with a rear-loaded design that reduces surface area and boosts low-speed performance while maintaining stability and control.
Inflected Wingtips: Enhanced control during surface-piercing breaches with high resistance to ventilation.
Versatile Performance: Excels across all foiling disciplines.
Wide Range Efficiency: Delivers consistent performance from low to high speeds.
Without the use of a Shim the performance of your Foil is compromised.
Visit this link to read about the Basic Setup and Custom Tuning of your Foil Assembly by KT Foiling.
Optimized for Surf, Wing, and Wake: Tailored for turning and surf-style performance across various conditions.
Due to the Nomad’s unique high camber profile, early lift, and stall resistance, we recommend sizing down 10-20% compared to other foils on the market. Available Sizes:

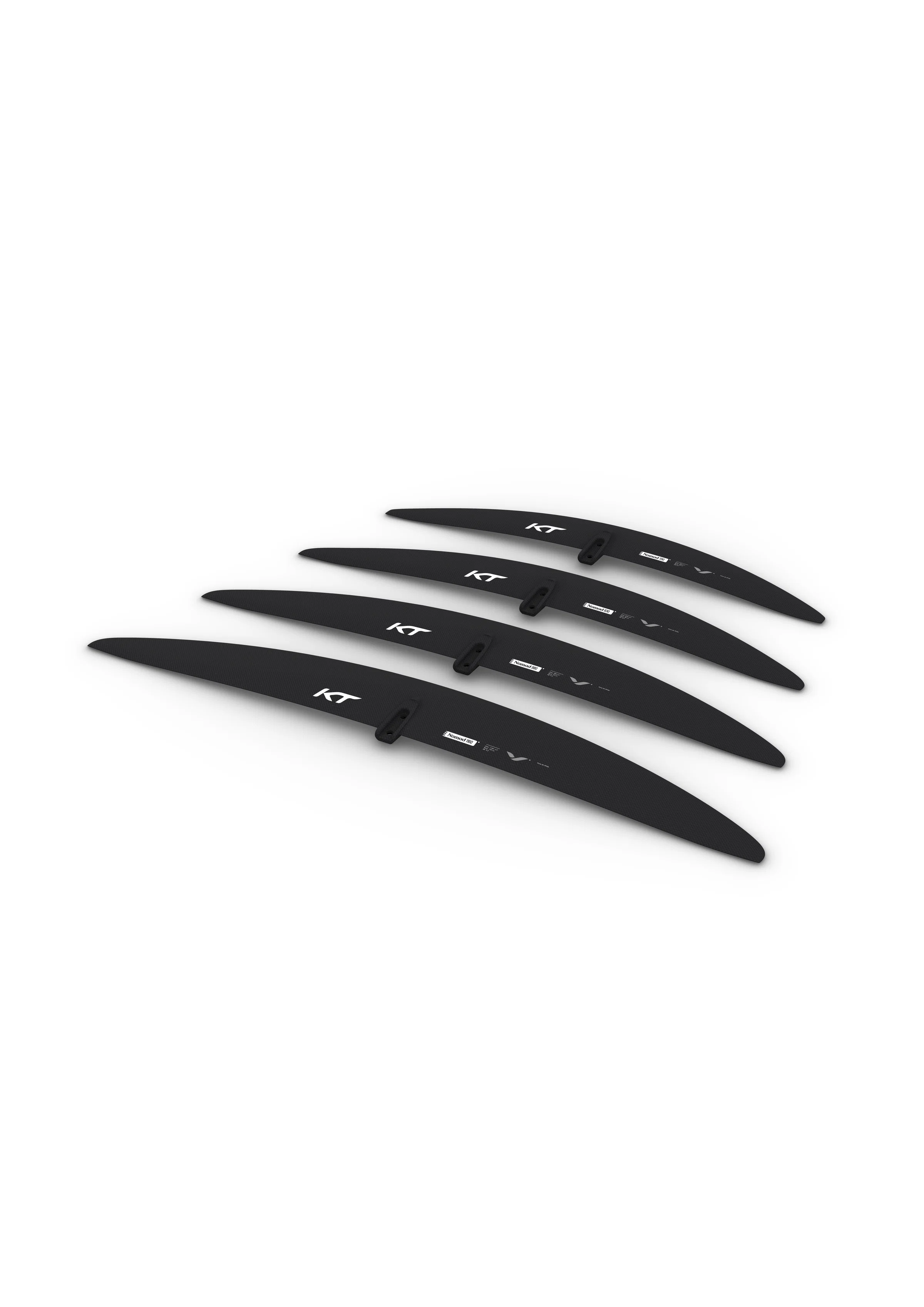

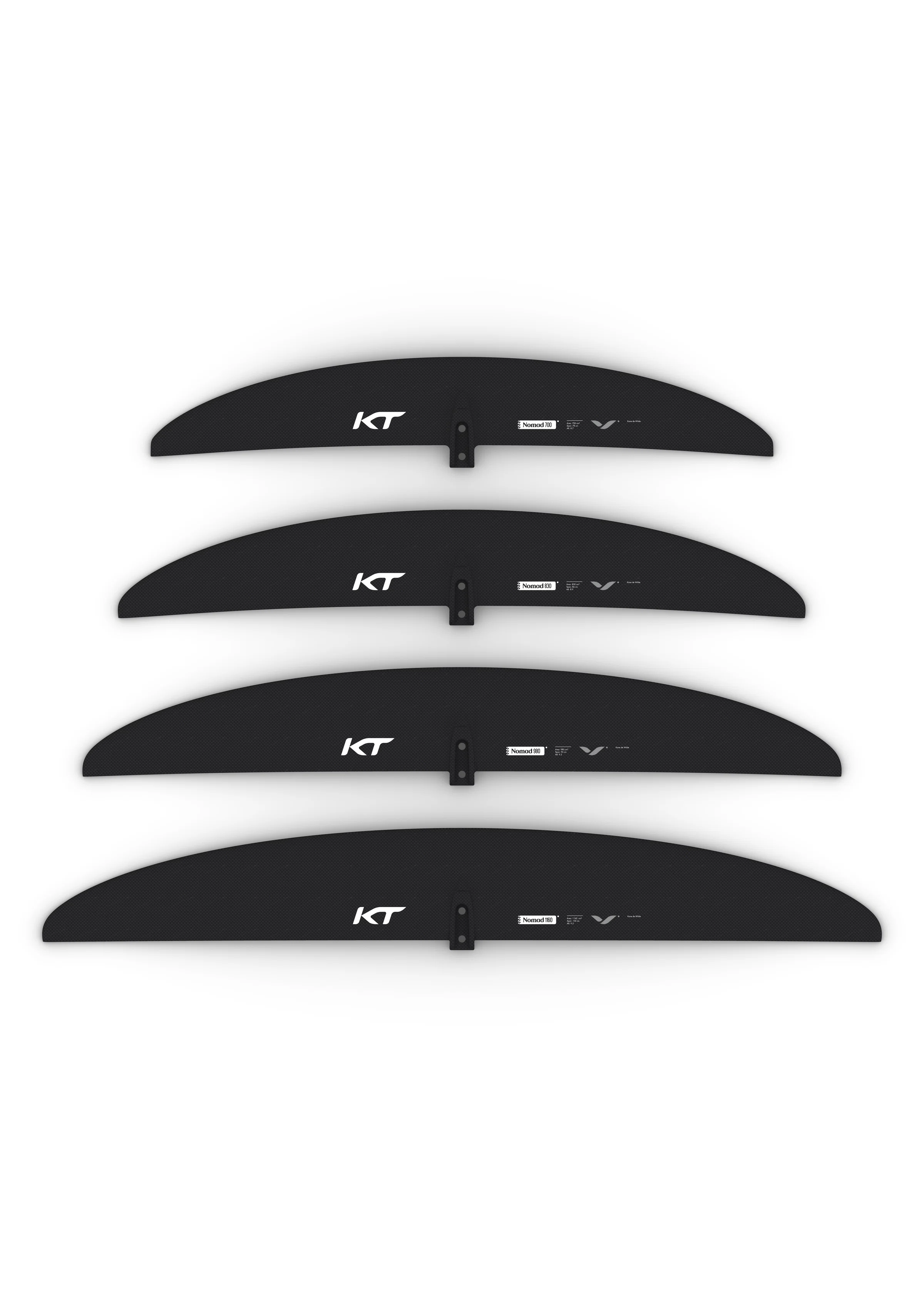

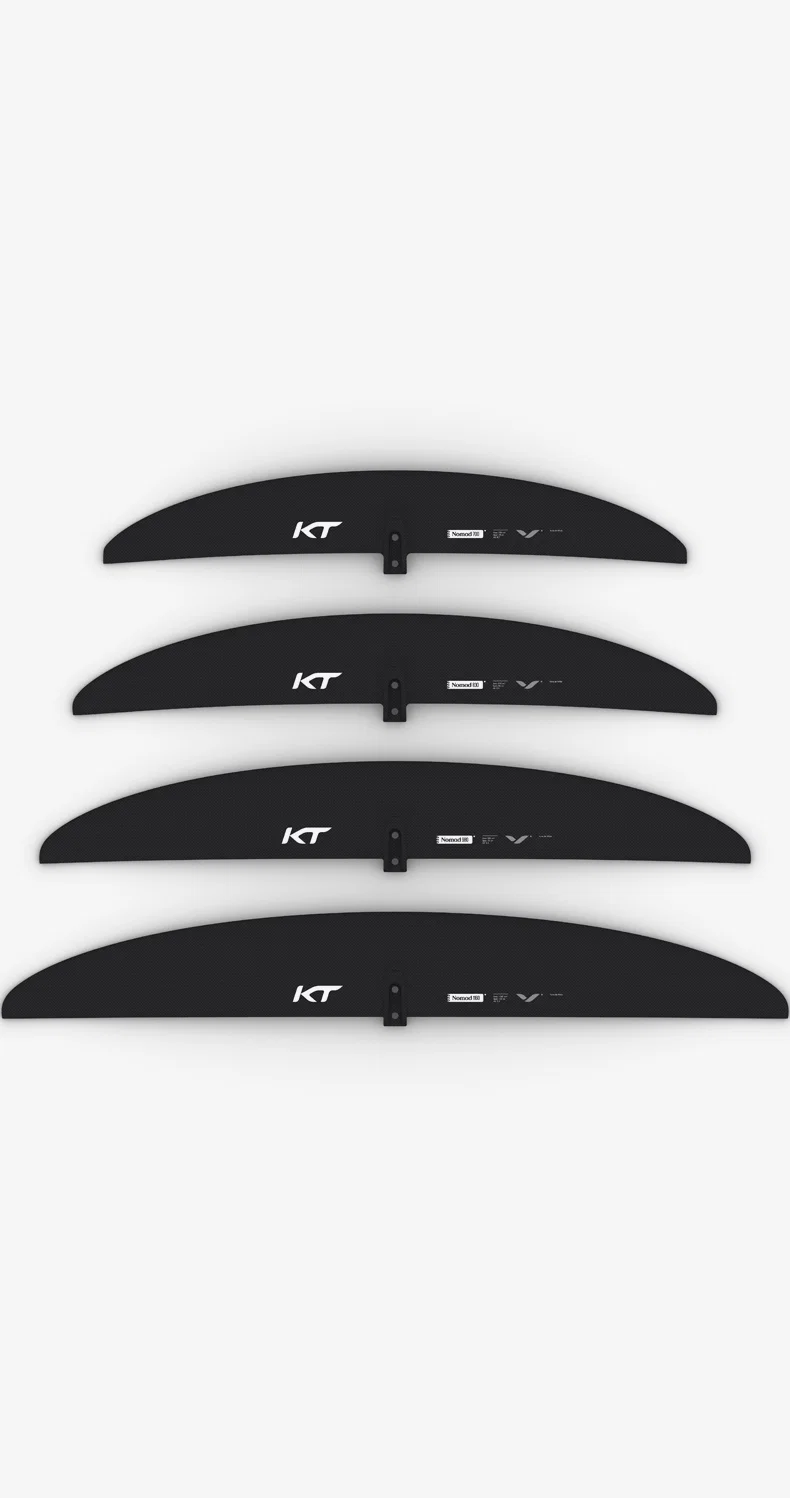

Front Wing: 700, 830, 980, 1160 cm²

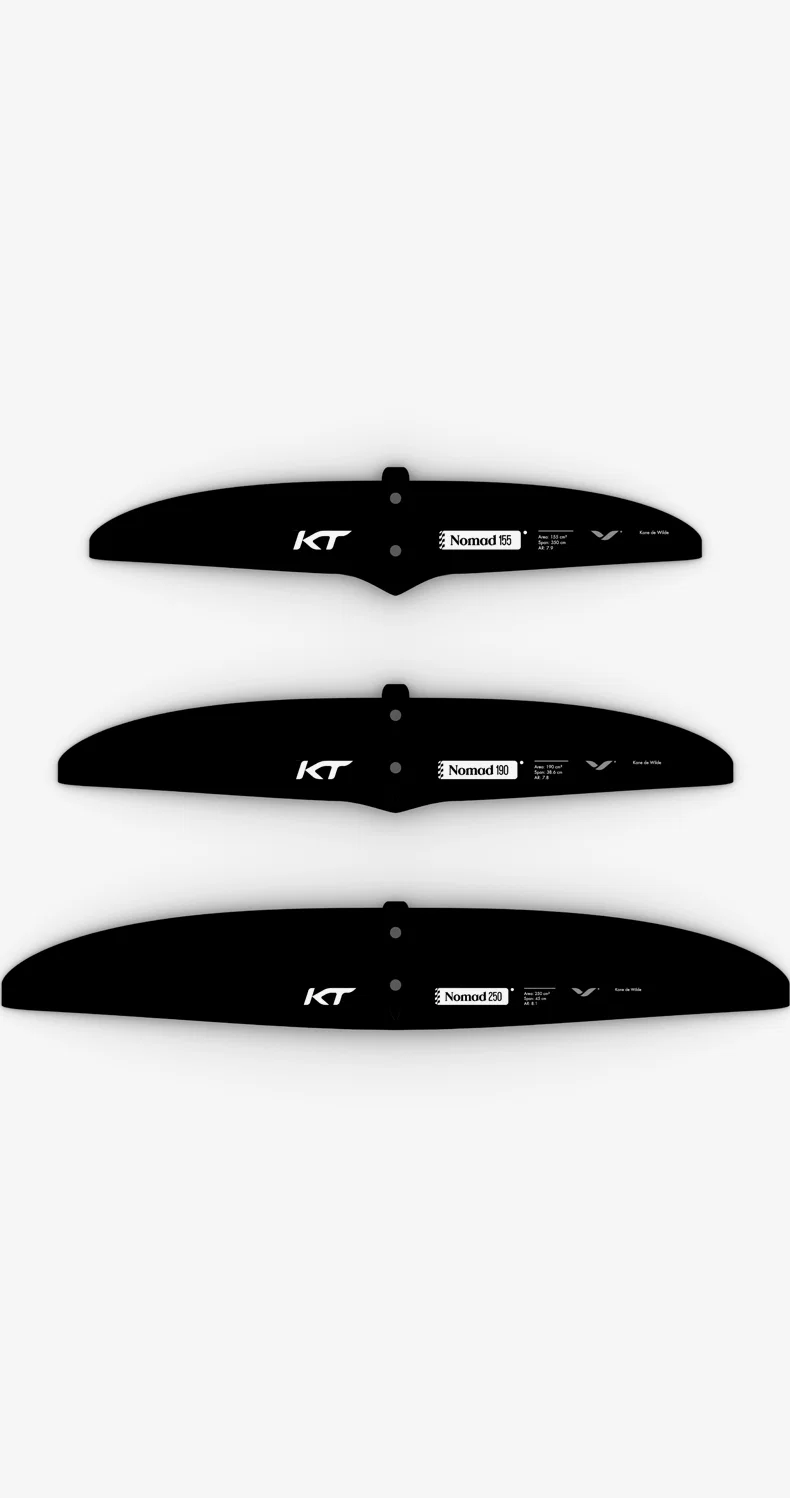

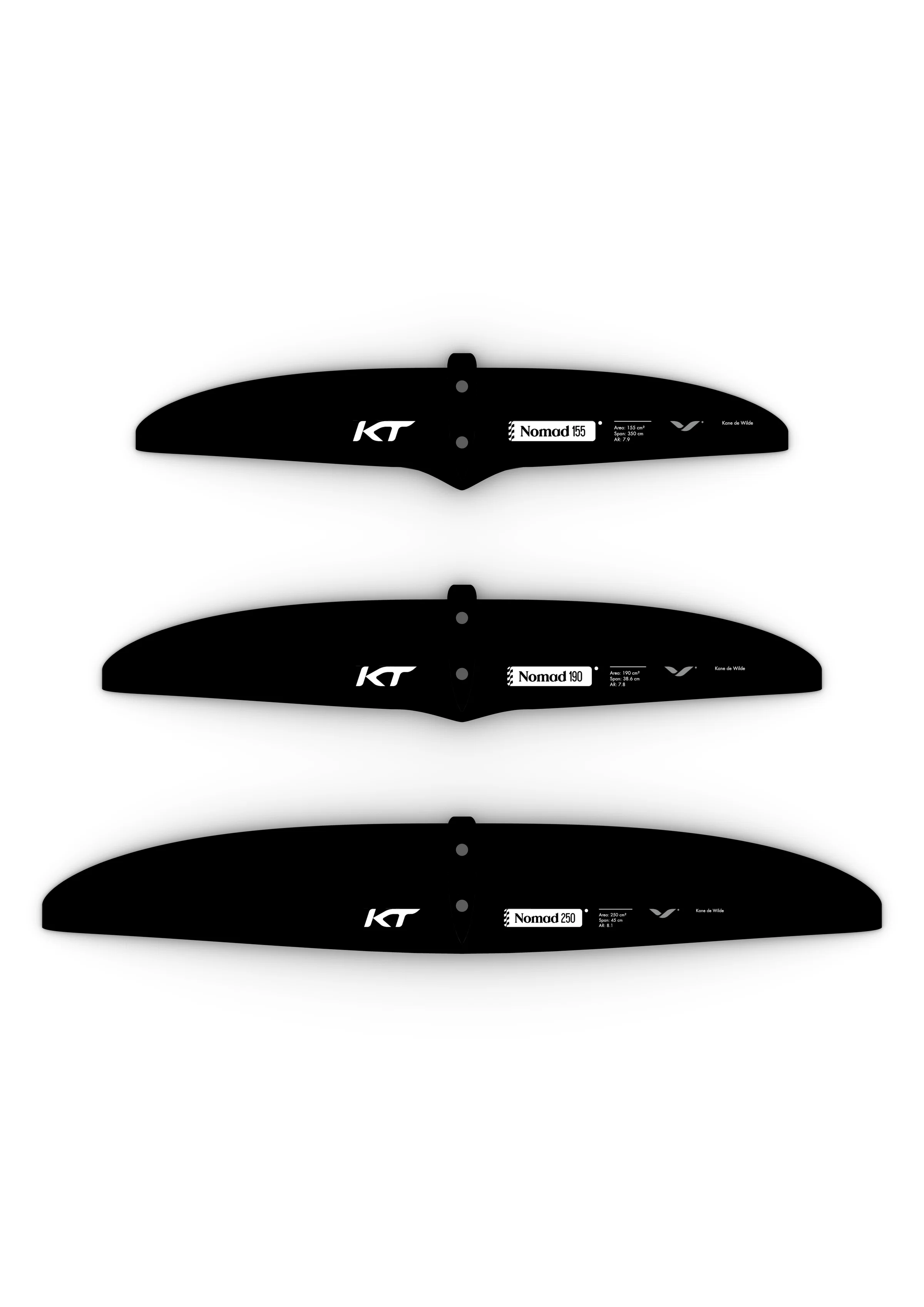

Back Wing: 155, 190, 250 cm²
Applies to Stock Model.
Intermediate.
The Nomad series is designed to unlock intuitive handling and control over an exceptionally wide range of speeds and conditions.
Ideal for quickly progressing intermediate to advanced wing and surf foilers, it’s also a must-have for any level of prone, wake, or kite foiler.
With a swept mid-aspect ratio design, the Nomad seamlessly flies and carves with an agile yet predictable feel.
Its unique high camber foil section enhances early takeoff, pumping, and low-speed handling, while offering steady resistance to stalling.
The compact span and inflected wingtips also offer noticeable resistance to ventilation during breaching carves and turns.
Wide Range Efficiency: Delivers consistent performance from low to high speeds.
Speed Ranges:
700 cm²: 8.5 – 34 mph
830 cm²: 8 – 33 mph
980 cm²: 7 – 30 mph
1160 cm²: 6.5 – 28 mph
Available in satin Carbon Finish and minimalist timeless logos.
Applies to Stock Model.
High-quality 316 Stainless Steel Torx hardware available separately as box sets or individual spare pieces.
Carve-Oriented Geometry
Swept mid-aspect ratio design enhances responsive and intuitive handling for surf and skate style performance.
Advanced High Camber Airfoil
Optimized for maximum efficiency across a wide speed range, with a rear-loaded design that reduces surface area and boosts low-speed performance while maintaining stability and control.
Inflected Wingtips
Enhanced control during surface-piercing breaches with high resistance to ventilation.
Versatile Performance
Excels across all foiling disciplines.
Precision and Control
Reactive handling for rail-to-rail turns and control through whitewater and turbulence.
Compact Span
Designed for leaned-over carves, tighter turns, and minimal wingspan flex.
For all waves, anywhere, anytime. Small, big. Slow, fast. Onshore, sideshore. Even flat water lagoons.
Progression-Driven Design: Crafted to support and elevate rider progression.
Applies to Stock Model.
Each model comes with its own bespoke formfitting protective bag. Travel bag available.
Applies to Stock Model.
We are excited to unveil our new line of contest and race winning hydrofoils, designed to push the boundaries of progression, performance, and innovation. With meticulous R&D, cutting-edge profiles, and future proof connections, these foils are crafted to seamlessly pair with any board and offer an unparalleled range of speed, glide and control.
Three distinct series cater to a wide range of riding styles and skill levels, ensuring that every rider can find a perfect match. Each foil has been individually designed and optimally tuned to provide the most balanced and efficient flight across different combinations of wings, masts and fuselages.
Rigorously tested by elite athletes like Kai Lenny, as well as everyday riders, KT Foiling is committed to delivering exceptional quality and performance.
Applies to Stock Model.
All parts are interchangeable within the entire KT Foiling foil range.
The space below is yours to share your thoughts. Find existing reviews below. Asterisks denote required fields.
Currently riding a KT Super K 92lt 6't5" board which I absolutely love, it has taken me so far in my progress over the past year. Im still an intermediate, but carving gybes 90% & learning to tack.
Just received my brand new KT 85cm mast, Nomad 1130 & 830 with longer fuse & tails to match. So stoked. Cold here in Canada now but might go out anyway to try them.
Question is mast position on this board.
Currently ride with mast near the middle of the track, but would like to know recommended position. In addition, does this mean front of mast base plate on a certain number on track or leading edge of mast estimated at certain position in the track?
Or, do I just lift the board up assembled with my foil so it lifts up flat with my hand under front foil?
Many thanks, so stoked to use my new Nomad set up
Jeff
Response: Hey Jeff,
Really happy to hear you are enjoying your Super K and Nomads. The 1130 and 830 is a great combo that covers you on both the good days and the really light ones.
Generally with any foil you want the center of lift right under your center of mass. If you look straight down, the front wing should land right between your feet.
I usually start by looking at the deck and figuring out where I want my feet to be, usually around the strap inserts and not too far forward or back. Then I line the front wing up between my stance. Most of the time that puts my back foot either over the mast or just slightly in front of the base plate.
If you want to do the board and foil balance test, pick it up with your palm on the foil toward the rear third of the wing, near the trailing edge, right under that rear loaded camber. That section provides a lot of the lift in the Nomads and Atlas wings.
Since these foils have a lot of lift for their size and are really stall resistant, I would start a little farther back than you think and move it forward only if you need more lift.
If the foil is too far forward it will feel very pitchy, sensitive, and even draggy.
Best,
Ryan Arzy
Hi all,
I received the KT Nomad 830 stab 155 today and did my first ride 15 knts with the Nomad, it is so playful, just a blast carving with so much ease.
On the beach, people were impressed and very curious. As a result, my buddy just ordered the Nomad 830.
My buddy and I with his dragonfly and KT1 with Atlas foils are getting a lot of attention and interest with the ease to fly.
Anyway a huge thank you, amazing board and foils a true blast
Pierre
I’ve had the opportunity to test most of the KT foil range, and I must say, the experience has been quite impressive. The stability of the foil system underfoot really stands out, and I appreciate how easy it is to assemble and disassemble. The connection points are particularly noteworthy; they eliminate any movement, which enhances overall performance.
The Nomad 830 is a versatile foil that performs well across a wide range of conditions, especially in 15 to 20 knots with choppy seas. However, I would recommend trying the Nomad 700 for those looking for even more responsiveness in higher wind conditions. The 700 offers exceptional speed, making it excellent for sharp turns and efficient pumping. Both the Nomad 830 and 700 boast impressive top-end speed and strong low-end performance, which has notably improved my average speeds thanks to their stability and smooth handling.
Additionally, I’ve tested the Atlas 680 and 790. These foils are quite similar to the Nomads but offer enhanced glide and pumping abilities and increased speed , along with a slightly more drawn-out turn radius. Overall, these foils provide a fantastic range of options for different riding styles and conditions.
Just got mt kt kit today shot out to the beach once I had set up my foil drive, nomad 980 wing ,85 mast,63 fuse,190 tail, found this to have plenty of lift more than my sk8 1150, pumped better as well and has way better turning ability. I reckon I'm going to try the 830 next.
I missed you when dropping off the KT Foil, thank you very much for letting me use your personal gear, the foil is absolutely amazing, enough so I ordered one through TJ at Big Winds. I hope more people can experience Kane's amazing design.
Hope you have a great day.
Ken
A few days in to riding my new KT foils and they are INCREDIBLE! I wing and downwind SUP foil in Hood River and have been riding the 960 Atlas and 1160 Nomad so far on the 77cm mast with the 170 atlas tail on the 110L Dragonfly 2. For reference I weigh 215lbs dry. We've had small but carvable waves and both wings have exceeded expectations. As soon as there's any semblance of stable wave energy the 960 Atlas lights up. It's easy to get on foil and can glide, pump and connect bumps with ease. The 1160 has been great for marginal winter conditions and can pop up on even the slightest bump while still being fun carvey and playful to ride. Can't wait for bigger days to step down to the 790 and 680 Atlas!
Just got the Nomad 830 taking a punt. Been out twice. First in 20 to 30 knots with 4m wing. At first some pitch sensitivity but soon overcame that, but the gusts meant I breached a couple of times. 2nd time was out in 0 to 12 knots with little puffs coming through and 5m wing. Moved foil towards the front of the box. In the gusts had no issues getting up and the stall speed was low, everything felt good and tacks and gybes were seemless. This might be a one foil solution. I normally ride Sk8 950 and 1150 and this got up as easily but faster and turnier. Looking forward to trying an Atlas if I can find one.
